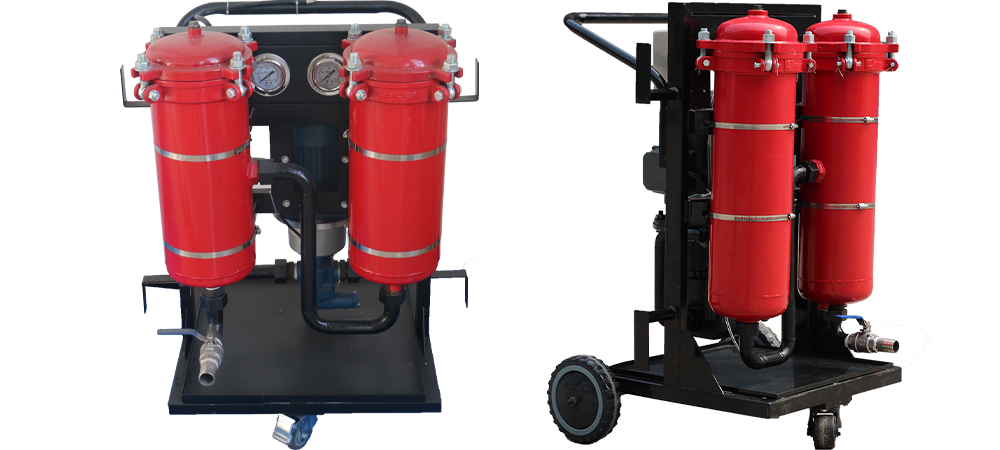

The machine consists of a motor-driven gear pump, dedicating low noise, strong self-absorption capacity, and smooth running characteristics.
The high-pressure pipe with overflow protection devices, which can effectively protect the safety of the hydraulic system.
| Model | unit | LYC-25B-*/** | LYC-32B-*/** | LYC-40B-*/** | LYC-50B-*/** | LYC-63B-*/** | LYC-100B-*/** | LYC-150B-*/** |
|---|---|---|---|---|---|---|---|---|
| Rated flow | L/min | 25 | 32 | 40 | 50 | 63 | 100 | 150 |
| Temperature | ℃ | 50-80 | ||||||
| Recommended viscosity | CSt | 10-160 | ||||||
| Rated pressure | MPa | 0.6 | ||||||
| The original pressure loss | MPa | ≤0.01 | ||||||
| First filtration precision before pump | μm | 100 | ||||||
| Secondary filtration accuracy after pump | μm | 10、20、40 | ||||||
| Third precision filtration accuracy | μm | 3、5、10、20、40 | ||||||
| Voltage | V | Three-phase AC380V Two-phase AC220V | ||||||
| Motor Power | KW | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 | 3.0 |
| Weight | Kg | 46 | 78 | 90 | 96 | 102 | 120 | 160 |
| Dimensions | mm | 520x350x950 | 520x350x950 | 720X680X1020 | 720X680X1020 | 720X680X1020 | 720X750X1020 | 720X750X1020 |
1. The machine consists of a motor-driven gear pump, dedicating low noise, strong self-absorption capacity, and smooth running characteristics.
2. The high-pressure pipe with overflow protection devices, which can effectively protect the safety of the hydraulic system.
3. The use of thermal relay protection to prevent motor damage caused by motor overload.
4. Coarse filtration of suction port can protect the pump and extend the life of the main filter.
5. After the pump has two precision filters, so the oil can quickly reach high cleanliness.
6. First precision filter can filter out the larger particles of impurities, and secondary precision filter can filter out smaller particles or moisture.
7. The precision filter chosen by different users for different precision, can provide better protection for the system.
8. Precision oil filtration housing with quick open structure, which can quickly open the cover and replace the filter without any tools.
9. Pressure gauge equipped on the panel, can show the continuous indication of the degree of contamination of the system operating conditions and filter.
Applications
1.New oil filtration
2.Filling the new oil and purifying
3.Cleaning up the oil being used
4.Bypass filtration when hydraulic lubrication system at work
5.Removing the water from oil system
Power plant
Petrochemical
Machine made
Traffic
Metallurgical Mine
Lifeierte oil machine can produce 2000 sets of oil filtering equipment and other fluid purification equipment every year. We are one of the global competitive companies focusing on the research and manufacture of high-tech oil purifiers. The equipment is exported to nearly 50 countries all over the world! Provide online technical support and on-site service engineering to support customers' operational needs.
We provide various oil filter models. Our product sizes and materials are customized according to needs, and the capacity ranges from less than 1200L/H to 24000L/H.
→1. We are a manufacturer of oil purifiers, factory direct sales, no intermediate links, competitive prices.
→2. Our equipment is imported accessories, and the quality of the products produced is stable.
→3. To ensure on-time delivery, we can provide the best quality service, transportation, document preparation, etc.
→4. We will answer your inquiry within 24 hours.
→5. With more than 12 years of R&D experience and a professional technical team in the oil filter industry, our customers feel relaxed and happy when working with us.
