Features of pressure line filters
Introduction: The
pressure filter assembly of the hydraulic line is used to clean the hydraulic oil or fluid in the pressurized hydraulic system. They include a housing head and a replaceable filter element, and are designed for systems with high flow rates and pressures of 1,000 psi or higher. When the pressure filter becomes dirty or clogged due to normal wear and tear, the pressure filter should be replaced. Clean hydraulic oil can reduce the accumulation of contaminants, reduce maintenance costs and extend the service life of system components. They are installed between the pump and the valve and cylinder to protect them from wear and contamination.
Performance characteristics
1. High porosity and excellent permeability, low pressure loss and large flow;
2. The national standard filter has large dirt holding capacity, high filtration accuracy and long replacement period;
3. Excellent temperature and corrosion resistance, can be used for a long time at 480°C, resistant to corrosion by nitric acid, alkali, organic solvents, and chemicals;
4. The wave can be folded to increase the filtering area and can be welded and processed;
5. High strength, even if the liquid is strongly washed or shaken, the fiber will not fall off.
technical parameter:

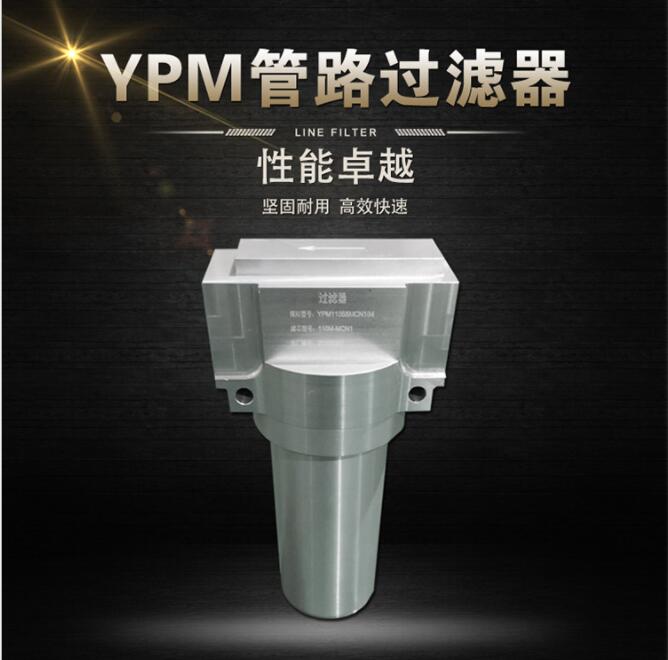

Brand: Lifeierte
Model: YPM-330*5
Working pressure: 21MPa
Working temperature: -25~110°C
Nominal flow: 330L/min
Filtration accuracy: 5um
Working medium: mineral oil, emulsion, water-glycol, phosphate ester hydraulic oil, water
Application areas:
1. Metallurgy: used in the filtration of the hydraulic system of rolling mills and continuous casting machines and filtration of various lubricating equipment.
2. Petrochemical: Separation and recovery of products and intermediate products in the process of oil refining and chemical production, and particle removal and filtration of oilfield injection water and natural gas.
3. Textile: Purification and uniform filtration of polyester melt in the process of drawing, protection and filtration of air compressor, degreasing and dewatering of compressed gas.
4. Electronics: Pre-treatment filtration of reverse osmosis water and deionized water, pre-treatment filtration of washing liquid and glucose.
5. Mechanical processing: lubrication system and compressed air purification of papermaking machinery, mining machinery, injection molding machine and large precision machinery, filtration of tobacco processing equipment and spraying equipment.
