3R  Ultra-precision oil filter machine

overview

With the rapid development of the hydraulic industry, higher requirements are placed on the reliability of the hydraulic system. At present, about 70% of failures in hydraulic systems are caused by oil contamination. In order to control the pollution degree of the hydraulic system, in addition to installing an oil filter in the hydraulic system, the new oil injected into the system also needs to be pre-purified by a high-precision oil filter, and the high-precision oil filter can also be used to clean the hydraulic system. Perform circulating filtration to purify the oil in the system.

3R series high-precision oil filter can be used for oil filling or periodic purification and filtration in hydraulic systems, static pressure systems, lubrication systems and various oil systems. It also has a certain economic effect on the recovery of dirty oil, and is an ideal energy-saving equipment. This series of high-precision oil filters can not only filter out impurities in the oil, but also absorb trace amounts of water in the oil.

3R series high-precision oil filter has the characteristics of lightness and flexibility, convenient movement, simple operation, reliable performance, compact structure, beautiful appearance, and convenient use and maintenance.

Application range

1. Filtration when refueling the hydraulic lubrication system.

2. Bypass filter when the hydraulic lubrication system is working.

3. Circular filtration before the hydraulic lubrication system is put into operation.

4. Connected to the hydraulic lubrication system to comprehensively improve the cleanliness of the system.

Features

1. The components are covered with an exquisite shell to protect the equipment from external pollution, especially suitable for occasions with high requirements on the use environment.

2. Equipped with leakage and overload protection shutdown device to protect the motor.

3. Equipped with overpressure protection device to protect the hydraulic system.

4. Equipped with oil pumping and filter replacement device, convenient for oil pumping or filtering.

5. Equipped with filter clogging alarm signal and shutdown device.

6. Independent oil pump, vacuum gauge, pressure gauge and multiple filter cartridges are connected in parallel.

7. The coarse filter at the oil suction port protects the oil pump and prolongs the service life of the main filter.

8. It can continuously purify the oil, remove the pollution particles and water in the oil, and the filtration accuracy can reach NAS1638-4 level.

9. Flow rate optional: 3-30L/min.

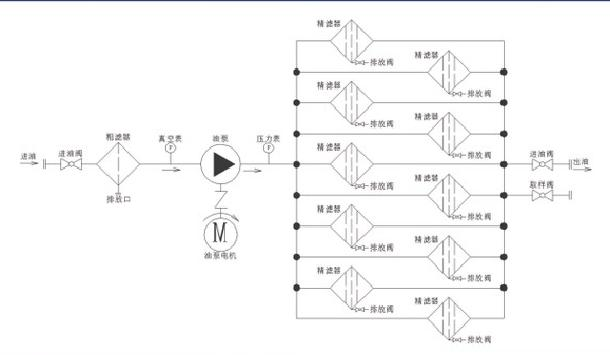

working principle
