LYC-A/B   Series high precision oil filter

Overview

With the rapid development of hydraulic industry technology, higher requirements are put forward for the reliability of hydraulic system work. However, 70% of the failures in the hydraulic system are caused by oil pollution, and 60% of the pollution comes from new oil.

The pollution generated by the system parts during the working process accounts for 20%, and other reasons account for 20%. Pollutants are generally 5~

Particles of 15 microns are extremely harmful to the precision parts of the system. For this reason, the international community strictly controls the oil cleanliness of precision components such as servo parts in the hydraulic system, and requires the cleanliness of new oil to reach GJB420 (equivalent to American Aerospace Standard NAS1638) Level 5-6 , to ensure stable and reliable operation of the system. However, according to the analysis of samples taken from domestic hydraulic oil barrels, the cleanliness of domestic new oil is generally only

Grade 10-11 of GJB420 (NAS1638). If such heavily polluted new oil is used without strict filtration and purification, it will cause serious harm to the life and reliability of the precision components of the entire system.

To sum up, in order to adapt to the development of hydraulic technology, our company has developed a multi-functional, high-precision oil filter machine on the basis of giving full play to the production of various high-precision filter technologies. It is suitable for the use requirements of contemporary domestic and foreign advanced hydraulic equipment, and is currently the most advanced oil filter device in China.

Note: LYC-B series is our company's patented product: Patent No.: ZL201620198389.X

Application range

1. Filter the new oil.

2. Fill with new oil.

3. Purify the oil in use.

4. Bypass filter when the hydraulic lubrication system is working.

5. Adsorption of trace amounts of water in the system oil.

Features

1. This oil purifier includes a special gear pump driven by a motor, which has low noise, strong self-priming ability, and smooth operation.

Stability and other characteristics.

2. The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.

3. Adopt thermal relay protection to prevent motor damage caused by motor overload. 4. The coarse filter at the oil suction port protects the oil pump and prolongs the service life of the main filter.

5. There is a fine filter behind the pump. According to the specific working conditions, the first-stage filter, two-stage filter, third-stage filter, and fourth-stage filter are set after the pump, so that the oil can quickly reach a high degree of cleanliness.

6. The precision filter can be selected according to different needs of users to achieve the required results.

7. The oil filter shell is designed with a standard head, which effectively increases the compressive strength. The filter element is designed with a handle, which is convenient for replacing the filter element.

8. There is a pressure gauge on the panel, which continuously indicates the operating pressure of the system and the pollution degree of the filter element during operation. 9. A pressure difference alarm can be added to transmit the signal to the electric control box to realize the automatic shutdown function of the filter element overpressure.

10. Flow rate optional: 30-200L/min

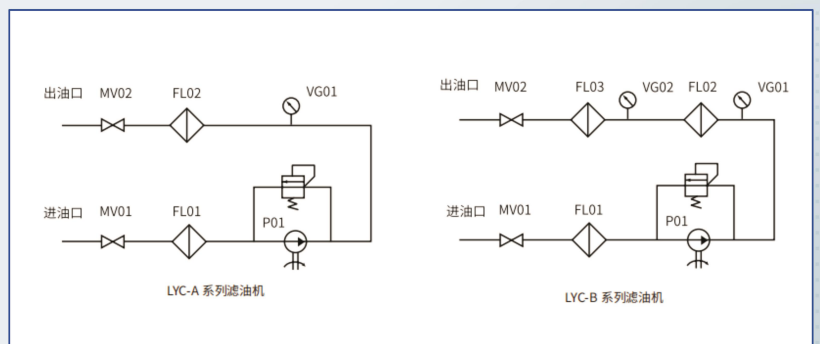

working principle
