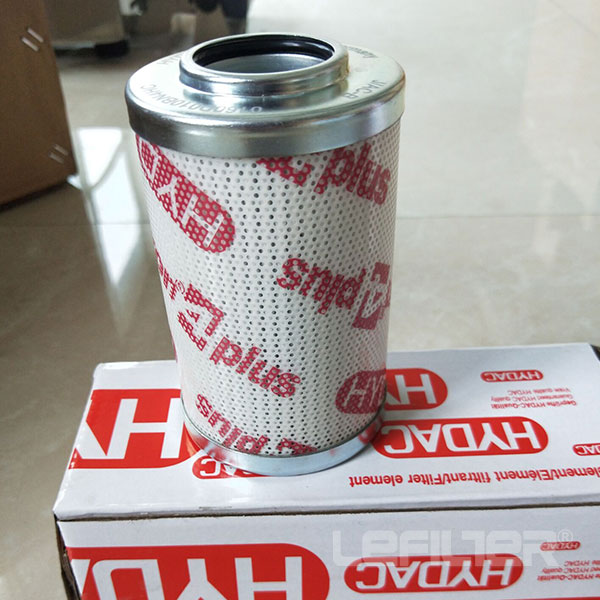

0160D010BN4HC Lefilter Replace Hydac Oil Filter

2021-04-16
0160D010BN4HC Lefilter Replace Hydac Oil Filter

0160D010BN4HC Lefilter Replace Hydac Oil Filter

LEFILTER company is the top on the hydraulic system pollution control.Their products have the characteristic on high pressure collapse resistance,high liquidity,high filtration efficiency.They are widely used in hydraulic and lubricant system to keep the systems operate regularly.Lefilter can produce such filters with same functions to replace HYDAC products.


Technical datas of hydraulic oil filter for hydac

Name HYDAC filters
Model  0160D010BN4HC
Material Glassfiber
Precision 10 um
OD 69 mm
Length 115 mm
Pressure 30 bar
Sample Yes





Technical Details:

Absolute filtration typically ßx(c) ≥ 1000
High ßx value stability across a wide range of differential pressures
High contamination retention capacity
Disposable elements and cleanable elements
Elements pleated
Flow direction from out to in to maximize stability
Excellent flow fatigue stability due to solid filter material support
Standard filtration ratings: 3μm, 5μm, 10μm, and 20μm absolute

Application
Hydraulic Support - Hydraulic Lift System, Mining Mobile Equipment
Injection Molding Machine - Hydraulic Drive System
Pulp and paper mills
Petrochemical Industry - Hydrocarbon Processing
Chemical Industry - Chemical Treatment
Power Generation - Wind Power Hydraulics
Iron and steel and heavy metal smelting - Blast furnace ironmaking hydraulic system
Pharmaceutical - Power Control System


Hydac Oil Filter nunber:



0100DN010BN4HC    0100DN025BN4HC
0250DN003BN4HC    0250DN006BN4HC
0250DN010BN4HC    0250DN025BN4HC
0063DN003BH4HC    0063DN006BH4HC
0063DN010BH4HC    0063DN025BH4HC
0100DN003BH4HC    0100DN006BH4HC
0100DN010BH4HC    0100DN025BH4HC
0250DN003BH4HC    0250DN006BH4HC
025 DN010BH4HC     0250DN025BH4HC
0400DN010BN4HC    0400DN003BN4HC
0040DN003BN4HC    0040DN010BN4HC
0400DN006BN4HC    0040DN006BN4HC
0040DN025BN4HC    0040DN003BH4HC



0040DN006BH4HC    0040DN010BH4HC

Get in contact and we will find the solution that best fits your need.
