Mobile filtration system
The condition of the hydraulic oil will seriously affect the overall operating condition of the hydraulic system. More than half of the failures can be attributed to poor fluid conditions, and contamination in the hydraulic fluid can have a very negative impact on the service life of other parts in the system.
Over time, excessive wear and tear means that the system will not perform optimally and productivity will be compromised. Without adequate filtration, you will face unnecessary and expensive costs. In order to ensure the best efficiency and longer service life of the equipment, you should invest in high-quality hydraulic filtration products.

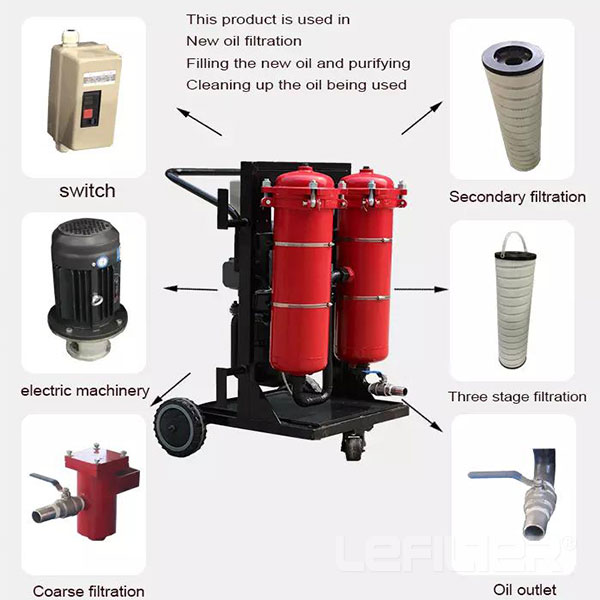

Through the mobile filter system, LEFILTER replacement hydac provides a wide range of professional solutions for hydraulic repair and maintenance. They are used for filter filling and/or re-pumping of hydraulic and lubricating media, for flushing at start-up or for continuous offline filtration. Convenient mobile device for separating solid particles in multiple plants at the same time (with or without integrated fluid sensor):
Portable filtering device
Mobile filtering device
Clean filling and rinsing
Flexible application in different factories
Reduce the load of mainstream filters
Improve system availability
Extend the life of hydraulic and lubricating media
|
|
Vane pump version |
Gear pump version |
|
Max.flow rate |
60/100LMIN |
|
|
Voltage |
230V,380V,440V |
230V,380V,440V |
|
Micro |
3-40um |
3-40um |
|
Viscostly Range |
15-400mm2/s |
15-1000mm2/s |
|
Permitted operating fluid |
mineral oil |
mineral oil |
|
Fluid tem |
-10--80c |
-10--80c |
|
Ambient Tem |
-10--40C |
-10--40C |
|
Seal,gaskets |
NBR |
NBR |
|
Protection class |
IP55 |
IP55 |
|
Weight |
135kgs |
145kgs |
|
Sizes |
705*610*1245mm |
705*610*1245mm |
